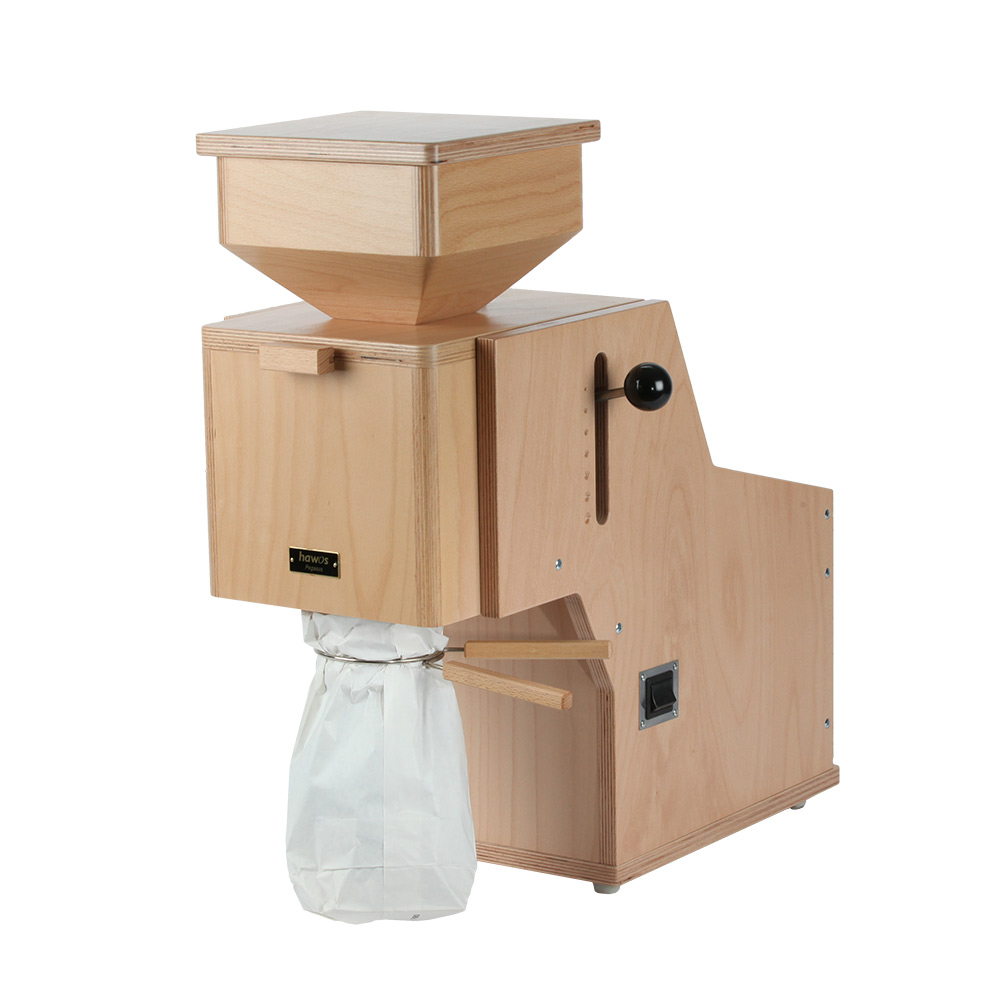

hawos Pegasus Grain Mill for Commercial use
hawos Pegasus is the ideal grain mill for health food stores, health food shops, hotel kitchens, canteens and self-marketers with a greater need for fresh grind. This mill is fast, quiet (72 dB) and has a very large funnel (2500 g).
For the self-service in the sales room, the Pegasus is ideally suited: select fineness level, fill grain, put bag under the outlet or fasten with clamp spring and turn on, grind, turn off.
Hawos Pegasus effortlessly grinds fine and flaky flour for you and your customers. This grain mill is very robust and designed for tough use in the trade.
Outstanding is the original design with the special superstructure. Due to this constructive nature, the funnel with the flour outlet always bends over the mill table. Flour containers up to the size of sacks can be placed underfloor and filled directly with flour from the Pegasus.
Technical Details for the hawos Pegasus
|Grinding capacity for (wheat)
approx. 400 g/min (14 ounces)
approx. 750 g/min (1.55 lbs.)
|Hopper capacity (wheat)||approx. 2500 g (5.5 lbs.) (expandablev)|
|Grindstone ø (corundum ceramic stones)||125 mm (4.9 inches)|
|Grinder bearing||Vertically mounted|
|Weight||approx. 35 kg|
|Motor output / Mains Voltage||750 W (230V & 400V)|
|Height allowance for bowl||17 cm|
|Footprint Dimensions (W x D x H)||270 x 660 x 650 mm|
|Volume||approx. 72 dB|
|On/Off switch||With motor protection function|
|Surface treatment||clear varnish|
|Guarantee||2 years (10 years if not used commercially)|
|Special Features||Single-handed operation|
|Standard equipment||-Special bag clasp
-Allen key for use in cleaning
Pegasus Hopper extender (+1,8kg)
Mountingboard for Pegasus
Ideal for the endurance race
hawos Pegasus always works idle and with grain in the grinder without stone contact. The millstones can not run hot. Cleaning the grinding chamber is quick and easy. The required Allen key is at hand in the mill housing. In case of service, the grinding system can be easily removed from the upper part of the mill (belt down – grinding system out). The shipping of the complete mill is therefore not necessary.
No Stone Contact – No Problems
The grinding stones in Pegasus cannot overheat because they never come in contact with each other – even when the machine is running empty. And cleaning the grain chamber is fast and easy, since the required Allen key is attached inside the mill. When it’s time for service, just loosen the drive belt and easily remove the millwork from the top of the mill housing. That way, you need to ship only the affected part.
Our Milling Technology
All hawos mills are built to the same high standards, and employ extremely hard milling stones to grind exceedingly fine. Extra-large corundum ceramic stones, with a 125-millimeter (4.9-inch) diameter, are set on a highly elastic bedding: The result is extremely quiet operation, with adjustable settings that give precisely the desired fineness to your grain or flour.
A robust industrial motor and switch, along with top-quality electrical parts, assure high efficiency and security. And our motors generate little heat, even during milling
Pegasus mills 350 grams (12.3 ounces) per minute at the fine setting, guaranteeing short waiting times even at your busiest periods. At the coarsest setting, Pegasus delivers up to 700 grams (1.55 lbs.) of milled grain per minute.
The patented millwork bedding in Pegasus means extremely low running noise – just 72 decibels.

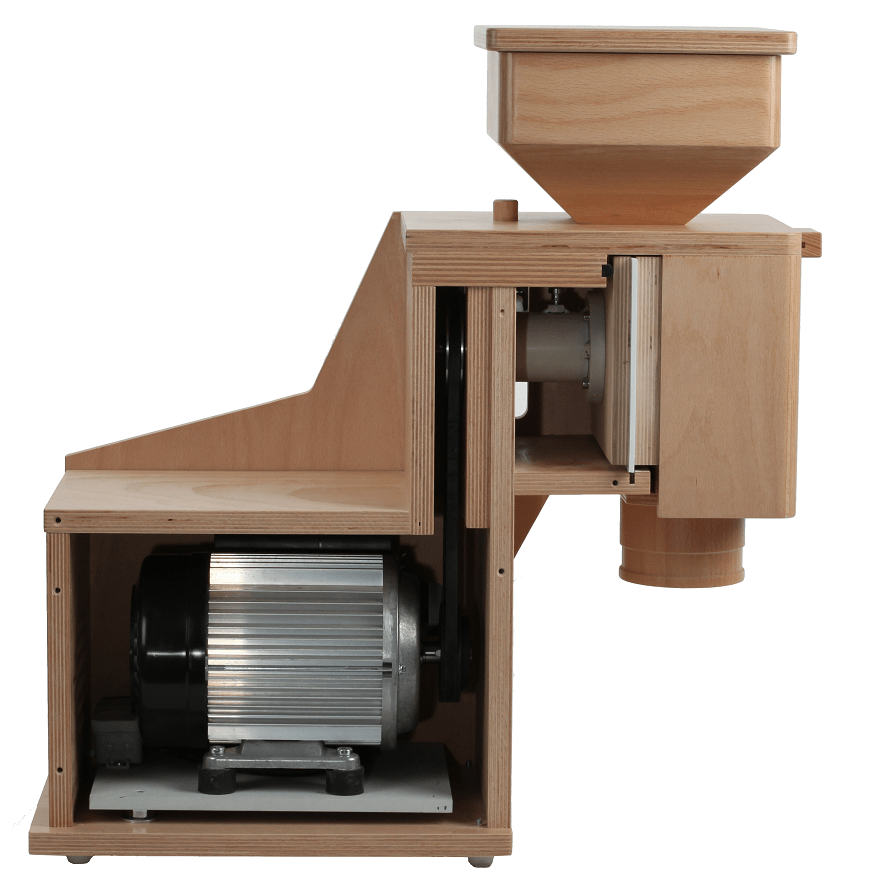

By employing a drive belt, Pegasus allows the millwork and the motor to be housed separately, and the milling stones are set vertically on the mill shaft so that no brushes or leather strips are necessary to extrude the ground meal or flour. Because the heavy motor is housed below, with the millwork above, the grain is not exposed to motor heat. The milling stones (not visible in picture) ‘stand’ at the very front of the Pegasus, directly above the discharge outlet.
Pegasus‘s large hopper holds a full 2.5 kilograms (5.5 lbs.) of grain and can be removed at any time – even when full, an especially handy feature when you need to change the type of grain being milled. For especially big loads, one or more extenders can be attached; each adds 1.8 kilograms (4 lbs.) of hopper capacity.
A Solid Birch-ply Housing
A machine built for heavy commercial use needs a tough, durable housing. We use birch ply, the ideal material for wooden appliances with long life expectancy – like hawos Pegasus.
Our Clasp Keeps Your Store Clean
With the special clasp feature on hawos Pegasus, the bag for the milled grain or flour completely encloses the grain discharge outlet, avoiding wastage and helping keep the area around Pegasus tidy.
A squeeze loosens the clasp to allow easy fastening or removal of the bag. The discharge outlet has been made extra large to avoid any accumulation of loose grain on the rims.
Bag On and Away You Go
Standard, stable paper bags are ideal for Pegasus. We recommend bags with twice the capacity of the unmilled grain, since fluffy Pegasus-milled grain gives more volume.
The performance of every Pegasus commercial mill is tested visually, acoustically and technically. When we make our final adjustments we run wheat through each mill to ensure hawos 90% milling efficiency standard; the DIN standard 10765 requires only 80% (fine). In other words, at least 90% percent (very fine) of the grain milled in Pegasus must pass through a laboratory sieve with 0.3-millimeter (0.01-inch) mesh before we ship the mill to you.
After extensive testing, hawos Pegasus has been given the CE quality designation. A Pegasus mill comes with a two-year guarantee.
